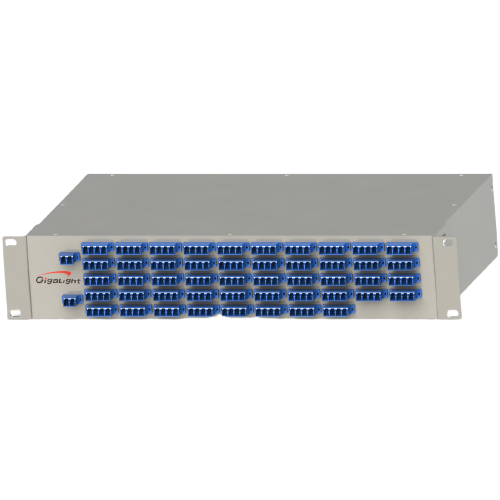

This dual-fiber multiplexer/demultiplexer features low insertion loss to enhance transmission quality and extend the reach of your DWDM systems. It is designed for Metropolitan Area Networks (MANs), regional networks, and other DWDM applications, providing significant fiber resource savings.
Product Specifications
Parameter
Unit
Specification
General Specifications
Passband Type
/
Flat-top
Grade
/
Standard Type
Number of Channels
/
96
Channel Spacing
GHz
50
Package Dimensions
mm
484 × 245 × 88 (19-inch 2U Rack-mount)
Optical Performance
Wavelength Accuracy
nm
± 0.05
1 dB Passband
nm
≥ 0.2
3 dB Passband
nm
≥ 0.32
Insertion Loss
dB
≤ 7.3
Ripple
dB
≤ 0.5
Passband Flatness
dB
≤ 1.5
Return Loss
dB
≥ 40
Isolation & Crosstalk
Adjacent Channel Crosstalk
dB
≥ 23
Non-Adjacent Channel Crosstalk
dB
≥ 29
Total Crosstalk
dB
≥ 21
Polarization & Dispersion
Polarization Dependent Loss (PDL)
dB
≤ 0.5
Polarization Mode Dispersion (PMD)
ps
≤ 0.5
Dispersion
ps/nm
± 20
Environmental Conditions
Operating Temperature
℃
-5 to +75
Storage Temperature
℃
-40 to +85
Application: Coherent Optical Communication, Metropolitan Area Network (MAN), Telecom
Product Type: Subsystems
Media Type: Single-Mode Fiber (SMF)
