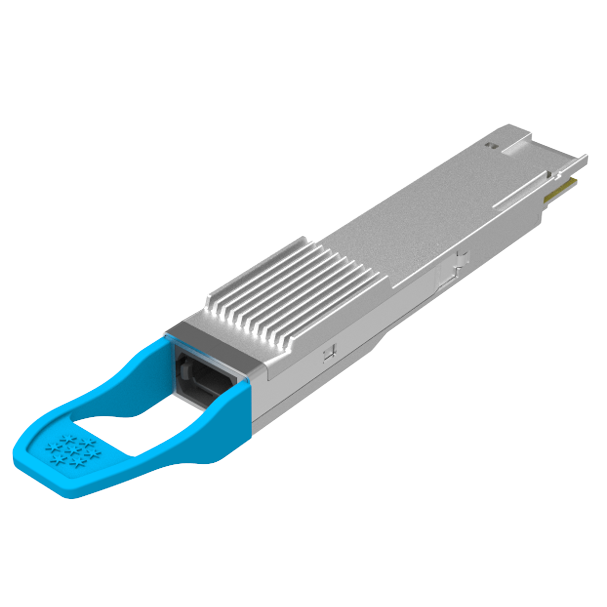

800G QSFP-DD Pluggable Optical Transceivers: Supporting SR8, DR8, DR8+ and DR8++ for Reach up to 10km

The 800G VSFP-DD pluggable optical transceiver modules are designed for 800G Ethernet and InfiniBand NDR applications. The portfolio features multiple reach options:

• SR8: Up to 100 meters

• SR4.2: Up to 150 meters

• DR8: Up to 500 meters

• DR8+: Up to 2 kilometers

• DR8++: Up to 10 kilometers



  Product Description	Technology	Modulation & Data Rate	Wavelength	Max Distance	Connector	Temp.	Part Number
  800G VSFP-DD VR8	III-V	8x100G	850nm	30m (OM3) 50m (OM4)	MPO-16 / Dual MPO-12	C	VQD-MPO801-VR8C
  800G VSFP-DD SR8	III-V	8x100G	850nm	60m (OM3) 100m (OM4)	MPO-16 / Dual MPO-12	C	VQD-MPO801-SR8C
  800G VSFP-DD DR8	SiPh	8x100G	1310nm	500m	MPO-16	C	VQD-SI801DR8C
  800G VSFP-DD DR8+	SiPh	8x100G	1310nm	2km	MPO-16	C	VQD-SI801xDR8C
  800G VSFP-DD DR8++	SiPh	8x100G	1310nm	10km	MPO-16	C	VQD-SI801LDR8C
  800G VSFP-DD 2xFR4	SiPh	2x400G	CWDM4	2km	Dual Duplex LC	C	VQD-SI8012FR4C
  800G VSFP-DD 2xLR4	SiPh	2x400G	CWDM4	10km	Dual Duplex LC	C	VQD-SI801LR4C
  800G VSFP-DD FR8	III-V	8x100G	LWDM8 EML	2km	Dual LC	C	VQD-SPO801-FR8C

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
