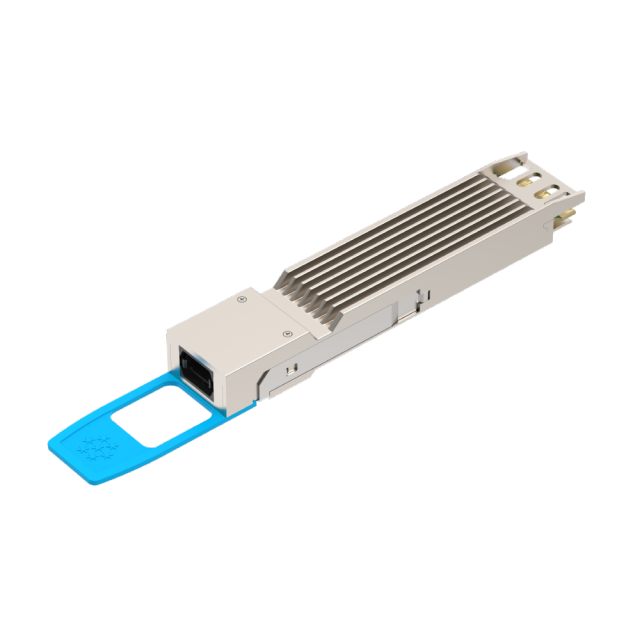

800G OSFP Transceivers: Supporting SR8, DR8, DR8+, and PLR8 for 100m to 10km Reach

This portfolio of 800G OSFP pluggable optical transceivers supports 800G Ethernet and InfiniBand NDR data rates. Available variants include:

• SR8: for reaches up to 100m

• DR8: for reaches up to 500m

• DR8+: for reaches up to 2km

• PLR8: for reaches up to 10km



  Description	Technology	Modulation & Data Rate	Wavelength	Reach	Connector	Temp.	Part Number(s)
  800G OSFP VR8	III-V	8x100G	850nm	30m (OM3) 50m (OM4)	Dual MPO12	C	VOS-MPO801-VR8C
  800G OSFP SR8	III-V	8x100G	850nm	60m (OM3) 100m (OM4)	Dual MPO12	C	VOS-MPO801-SR8C
  800G OSFP DR8	SiPh	8x100G	1310nm	500m	Dual MPO12	C	VOS-SI801DR8CA VOS-SI801DR8CC
  800G OSFP DR8+	SiPh	8x100G	1310nm	2km	Dual MPO12	C	VOS-SI801XDR8CA
  800G OSFP DR8++	SiPh	8x100G	1310nm	10km	Dual MPO12	C	VOS-SI801LDR8C
  800G OSFP DR8 LPO+*	SiPh	8x100G	1310nm	500m	Dual MPO12	C	TBD
  800G OSFP FR8*	III-V	8x100G	LWDM4	2km	Dual LC	C	VQS-SPO801-FR8C
  800G OSFP 2xFR4	SiPh	2x400G	CWDM4	2km	Dual Duplex LC	C	VOS-SI8012FR4C
  800G OSFP 2xLR4	SiPh	2x400G	CWDM4	10km	Dual Duplex LC	C	VOS-SI8012LR4C
  800G OSFP XPSM8/8ER*	SiPh	8x100G	1310nm	10km/30km	Dual MPO12	C	TBD

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
