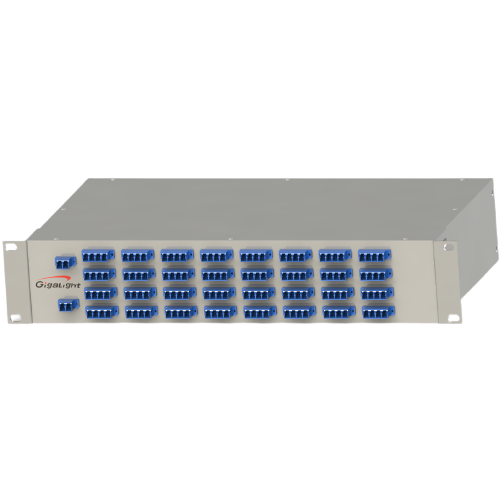

The 64-Channel DWDM Mux/Demux is designed for dual-fiber applications and operates on a 75GHz channel spacing. Housed in a compact 2U rack-mount enclosure, this module is engineered with low insertion loss to enhance transmission quality and extend the reach of DWDM systems.
Ideal for Metropolitan Area Networks (MANs), regional networks, and core DWDM infrastructure, it provides an efficient solution to maximize fiber capacity and conserve valuable fiber resources.
Optical Channel Specifications
Parameter
Specification
Unit
General Specifications
Passband Type
Flat-top
-
Grade
Type
-
Channel Count
64
-
Channel Spacing
75
GHz
Operating Temperature
-5 to +65
°C
Storage Temperature
-40 to +85
°C
Enclosure Dimensions
484 x 245 x 88 (19-inch, 2U Rack)
mm
Optical Performance
Wavelength Accuracy
±0.05
nm
1dB Passband
≥ 0.3
nm
3dB Passband
≥ 0.55
nm
Insertion Loss
≤ 6.0
dB
Ripple
≤ 0.5
dB
Passband Flatness
≤ 1.5
dB
Return Loss
≥ 40
dB
Isolation & Crosstalk
Adjacent Crosstalk
≥ 8
dB
Non-Adjacent Crosstalk
≥ 30
dB
Total Crosstalk
≥ 5
dB
Polarization & Dispersion
Polarization Dependent Loss (PDL)
≤ 0.7
dB
Polarization Mode Dispersion (PMD)
≤ 1.0
ps
Dispersion
±35
ps/nm
Application: Coherent Optical Communication, Metropolitan Area Network (MAN), Telecom
Product Type: Subsystems
Media Type: Single-Mode Fiber (SMF)
