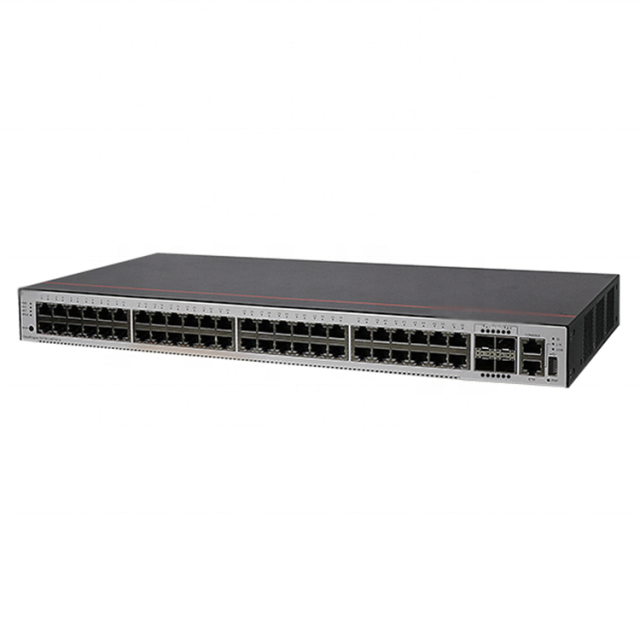

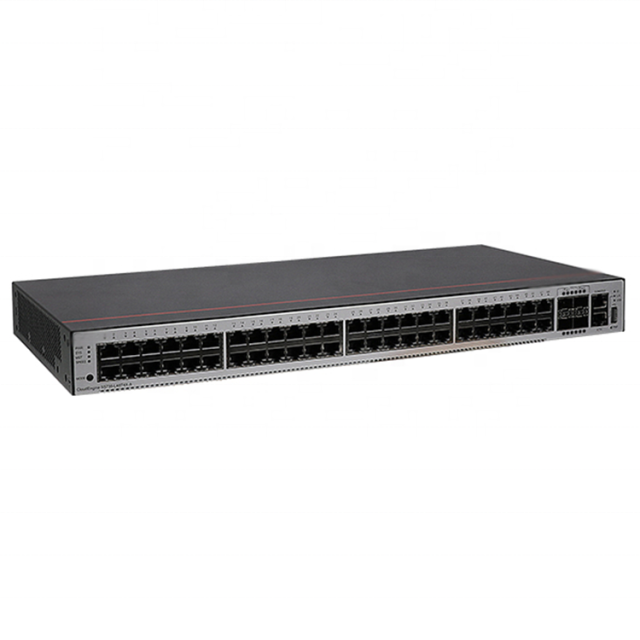

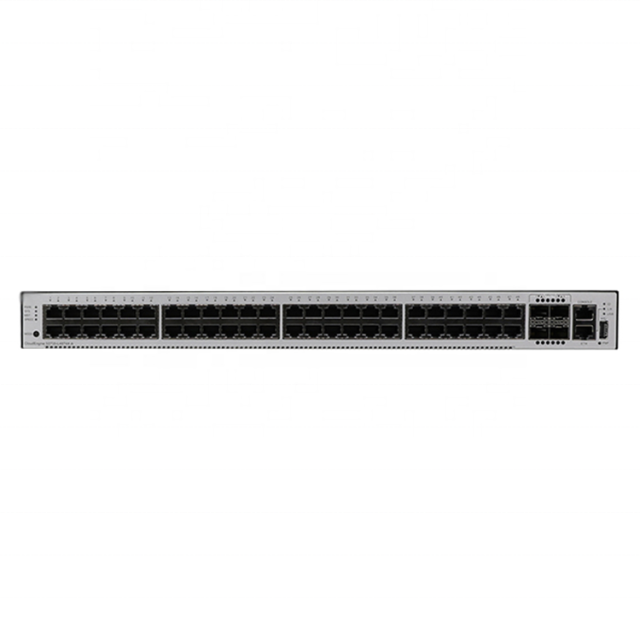

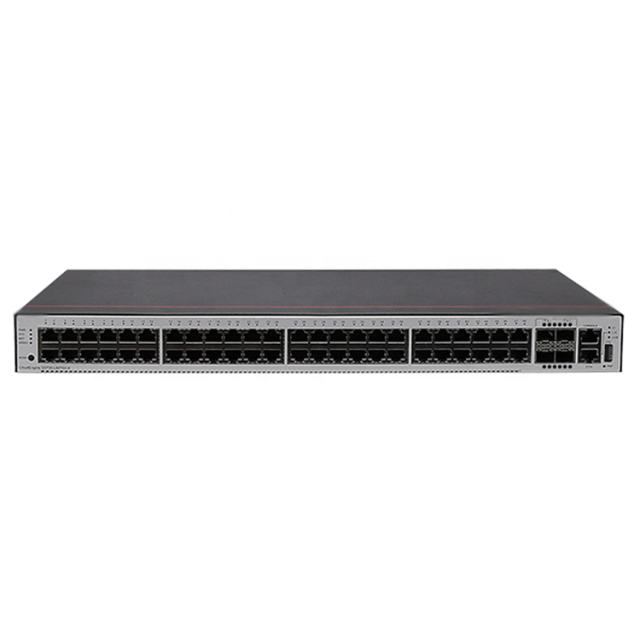

48-Port Gigabit Ethernet Switch, 4 x 10GE SFP+, PoE+, SNMP Managed

No.S5735-L48T4X-A1

Key Specifications

Brand & Model: CloudEngine S5735-L48T4X-A1
Product Name: CloudEngine S5735-L Series Network Switch
Ports: 48 x 10/100/1000Mbps Ethernet ports
Switch Capacity: 176 Gbps / 432 Gbps
Forwarding Performance: 132 Mpps
Transmission Rate: 10/100/1000Mbps
Communication Mode: Full-Duplex & Half-Duplex
Key Features:
- Layer 3 Routing: Static route, RIP, RIPng, OSPF, OSPFv3
- Network Management: SNMP, Stackable
- Security & VLAN: VLAN Support
- Link Aggregation: LACP (Link Aggregation Control Protocol)
- Cooling: Intelligent heat dissipation
Physical Characteristics:
- Chassis Height: 1U

Get The Latest Quote

Add to Quote List Browse the list

Description
Additional Information
Ordering & Payment Terms

Product Overview

The CloudEngine S5735-L series (model S5735-L48T4X-A1) is a next-generation, high-performance switch designed for flexible Ethernet networking. Built on Huawei's Versatile Routing Platform (VRP), it delivers robust performance, diversified security control, and powerful service processing capabilities.

Product Description

The CloudEngine S5735S-L Series Switches are built on next-generation, high-performance hardware and powered by the Versatile Routing Platform (VRP). They feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols, providing higher performance and more powerful service processing capabilities for enterprise networks.

Product Name	CloudEngine S5735-L48T4X-A1
Fixed port	• 48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
Power supply type	• AC power supply
Switch Capacity	176 Gbps/432 Gbps
Dimensions (W x D x H)	442mm 220mm 43.6mm
Chassis height	1U
Chassis weight	3.79KG
Ports	48
Storage temperat	-40°C to +70°C
Relative humidity	5% to 95% (non- condensing)

CloudEngine S5735-L48T4S-A1
48 x 10/100/1000Base-T ports, 4 x GE SFP ports •AC power supply •Forwarding performance: 78 Mpps Switching capacity: 104 Gbps/432 Gbps

CloudEngine S5735-L48T4X-A1

48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports •AC power supply Forwarding performance: 132 Mpps Switching capacity: 176 Gbps/432 Gbps

Small- or Medium-scale Enterprise Campus Network

CloudEngine S5735-L series switches can be deployed at the aggregation layer of a campus network to build a high- performance, multi-service, and highly reliable enterprise network.

Large-Scale Enterprise Campus Network

CloudEngine S5735-L series switches can be deployed at the access layer of a campus network to build a high-performance and highly reliable enterprise network.
