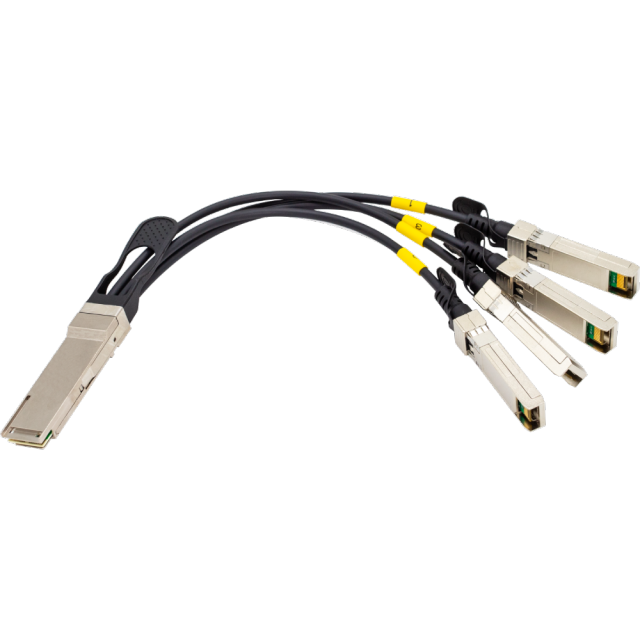

This 40G QSFP+ to 4 x 10G SFP+ PCC passive direct attach copper (DAC) cable is designed for interconnections within or between racks in data centers.
It complies with the IEEE 802.3ba 40GBASE-CR4 Ethernet standard and is also compatible with 10G SFP+ Cu Ethernet and InfiniBand QDR protocols.
The cable utilizes 8 pairs of coaxial wires to transmit four 10G NRZ signals, supporting link lengths of up to 3 meters (with 30AWG cable).
Product Model: VQS-4SFPPC-xxC
Distance (m)
Cable Gauge (AWG)
1 - 3
30
4 - 5
26
Product Type: Direct Attach Copper (DAC) Cables
Primary Application: Data Centers
Data Rate:
≤ 12 Gbps
40 Gbps to 56 Gbps
Supported Protocols:
Ethernet
InfiniBand
Compatible Form Factors:
SFP+
QSFP+
