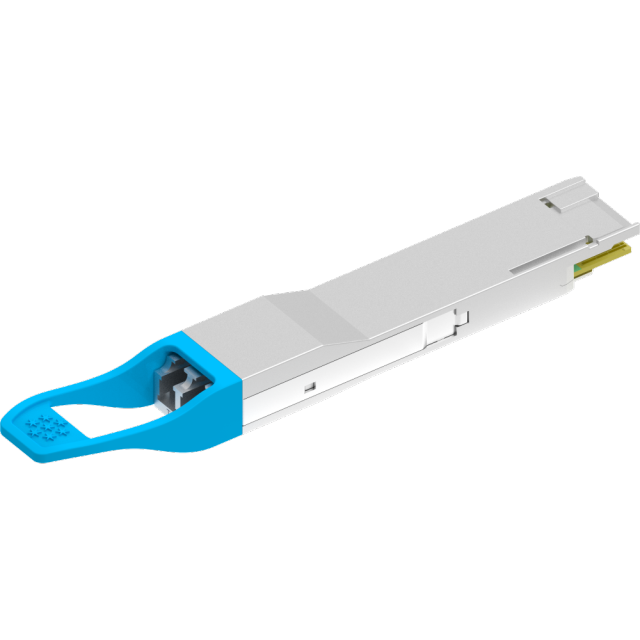

• 400GE QSFP-DD LR4 EML CWDM4 10km Optical Transceiver Module
  • 400GE QSFP-DD LR4 EML CWDM4 10km Optical Transceiver Module

400GE QSFP-DD LR8 EML LWDM8 10km Optical Transceiver Module

No.400G QSFP-DD LR8
  • 8-channel full-duplex transceiver integrated module in QSFP-DD hot-
    pluggable packages
  • 8-channel 53Gb/s  PAM4 EML LWDM transmitter and PIN receiver
  • Rate up to 425Gbps
  • Compliant with QSFP-DD MSA and IEEE  802.3bs 400GBASE-LR8 Ethernet transmission protocol
  • Power consumption is less than 12.5W
  • Dual LC optical interface
  • Commercial grade operating temperature range from 0 to 70 degrees Celsius
  • Transmission distance up to 2km  via single-mode fiber (FEC)
  • 3.3V power supply
  • RoHS compliant (lead free)
  • 400GE QSFP-DD LR4 EML CWDM4 10km Optical Transceiver Module
  • Description
  • Ordering & Payment Terms

The 400G QSFP-DD LR8 is a hot-pluggable transceiver module with the following key features:

  • Form Factor: QSFP-DD

  • Application: 400GBASE-LR8 Ethernet

  • Technology: 50G PAM4 modulation and LWDM8 (8-wavelength) multiplexing

  • Max Distance: 10 km over single-mode fiber

  • Use Cases: Data center interconnects and 5G network backhaul

Product Type

Pluggable Optical Modules

Application

5G Carrier Network, Data Center, Metropolitan Area Network, Telecom

Data Rate

400G

Protocol

Ethernet, OTN

Form Factor

QSFP-DD

Reach

2km-20km

Media Type

SMF

Wavelength

LAN-WDM

Interface

Dual LC
