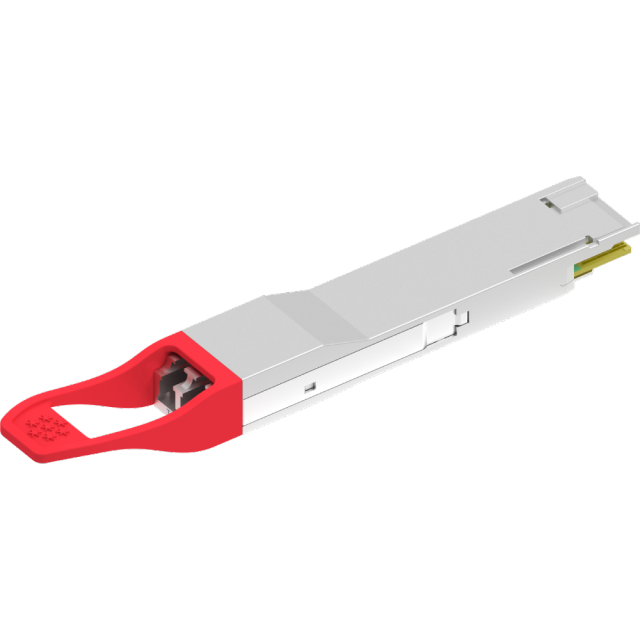

400GE QSFP-DD ER8 EML LWDM8 40km Optical Transceiver Module

No.400G QSFP-DD ER8
  • Full-duplex transceiver integrated module in QSFP-DD hot-pluggable package
  • 8-channel LWDM EML and AOD
  • The transmission rate per channel can reach up to 53.125Gbps (50G PAM4)
  • Compliant with QSFP-DD MSA and IEEE 802.3cn 400GBASE-ER8 Ethernet transmission protocol
  • Using 1 pair of single-mode optical fiber transmission, the distance can reach up to 40km (FEC on)
  • Power consumption is less than 14W
  • Dual LC optical interface
  • Commercial grade operating temperature range
  • Power supply voltage 3.3V
  • Comply with RoHS environmental protection standard (lead-free)
  • 400GE QSFP-DD ER8 EML LWDM8 40km Optical Transceiver Module
  • Description
  • Ordering & Payment Terms

The 400G QSFP-DD ER8 optical transceiver module is designed for long-distance data center interconnections.
It complies with the IEEE 802.3cu 400GBASE-ER8 Ethernet standard and integrates an 8-channel LWDM MUX and DEMUX.
Using a single-mode fiber pair, it supports transmission distances of up to 40 km, provided that Forward Error Correction (FEC) is enabled on the device port.

Product Type

Pluggable Optical Modules

Application

Data Center

Data Rate

400G

Protocol

Ethernet

Form Factor

QSFP-DD

Reach

25km-50km

Media Type

SMF

Wavelength

LAN-WDM

Interface

Dual LC
