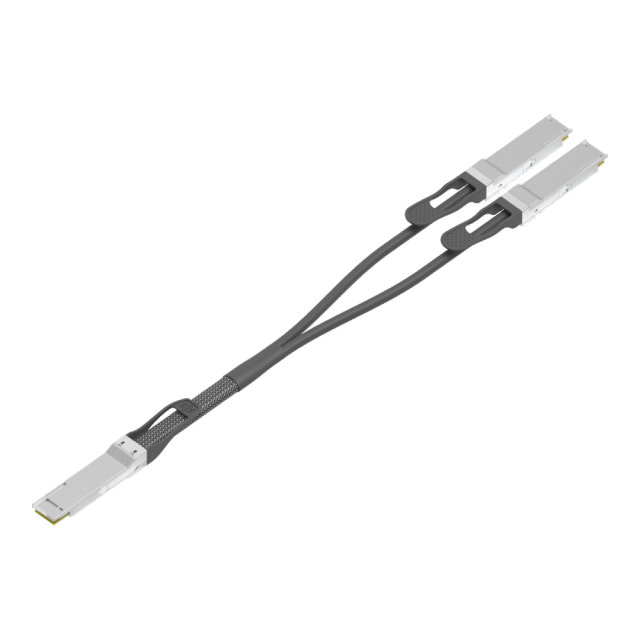

400G QSFP56-DD to 2x 200G QSFP56 Passive Copper Cable for 400/200GbE and InfiniBand HDR Inter-Rack Connectivity

Product Overview: The 400G QSFP56-DD to 2x 200G QSFP56 PCC passive direct attach copper (DAC) cable is engineered for high-density, high-speed intra-rack and inter-rack interconnects within data centers.

Key Specifications:

• Form Factor: 400G QSFP56-DD to 2x 200G QSFP56

• Type: Passive Direct Attach Copper (DAC) Cable

• Applications: Data center interconnects (intra-rack and inter-rack)

• Compliance & Compatibility:

  • Ethernet: Compliant with 400GBASE-CR8 (IEEE 802.3cd) and 200GBASE-CR4 (IEEE 802.3cd) standards.

  • InfiniBand: Compatible with HDR transmission protocol.

• Technology:

  • Utilizes 16 pairs of coaxial twinaxial cables.

  • Transmits 8 channels of 50G PAM4 signals.

• Maximum Reach:

  • 2 meters (with 30AWG cable)

  • 3 meters (with 26AWG cable)

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
