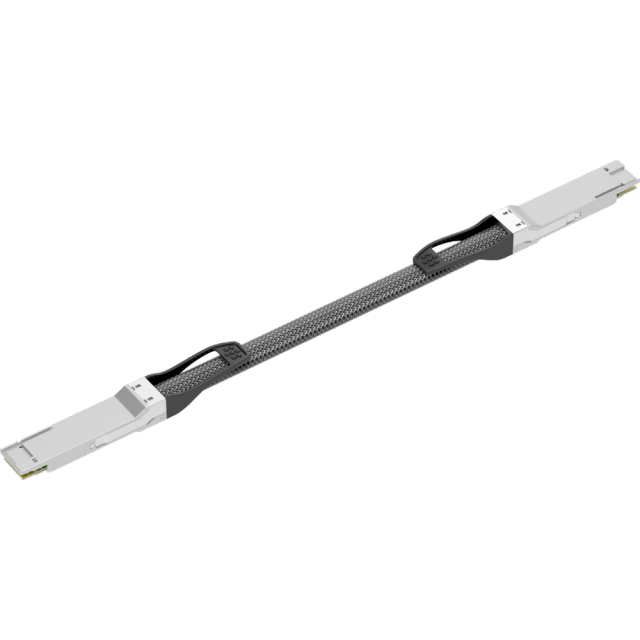

This 400G QSFP56-DD PCC passive direct attach copper (DAC) cable is engineered for intra-rack and inter-rack data center connections. Complying with the 400GBASE-CR8 Ethernet standard and compatible with InfiniBand NDR, this cable series employs 16 pairs of coaxial wires to transmit 8 channels of 50G PAM4 signals. Its maximum reach is 2 meters for the 30AWG variant and 3 meters for the 26AWG variant.
Product Type: 400G QSFP56-DD Passive Direct Attach Copper (DAC) Cable
Primary Use: Intra-rack and inter-rack interconnects in data centers.
Standards Compliance: Adheres to the 400GBASE-CR8 Ethernet protocol and is compatible with InfiniBand NDR.
Signal Transmission: Transports 8x 50G PAM4 signals over a bundle of 16 coaxial cable pairs.
Maximum Length: Up to 2 meters for 30AWG cable, and up to 3 meters for 26AWG cable.
| Product Model | PC401-xxC | |
|---|---|---|
| Distance (Meter) | 1~2 | 3 |
| Cable Gauge (AWG) | 30/26 | 26 |
| Product Type |
Direct Attach Copper Cables |
|---|---|
| Application |
Data Center |
| Data Rate |
400G |
| Protocol |
Ethernet, InfiniBand |
| Form Factor |
QSFP-DD |
