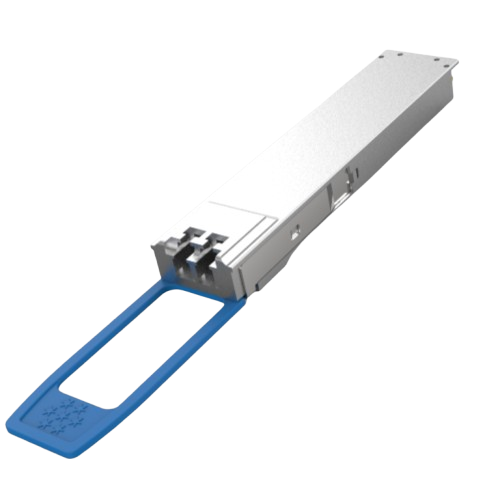

400G OSFP-RHS LR4 EML CWDM4 10km Optical Transceiver

The 400G OSFP-RHS LR4 is a hot-pluggable optical transceiver module engineered for high-speed 400 Gigabit Ethernet data center interconnects. It operates over a maximum link length of 10 kilometers on standard G.652 single-mode fiber (SMF) using KP-FEC (Kronecker-Product Forward Error Correction). The module employs a CWDM4 multiplexing scheme, utilizing four independent optical lanes with center wavelengths of 1271nm, 1291nm, 1311nm, and 1331nm, each transmitting at a data rate of 100 Gbps to achieve the aggregate 400G bandwidth.

400G OSFP-RHS LR4 EML CWDM4 Transceiver

• Form Factor: OSFP-RHS, hot-pluggable

• Application: 400 Gigabit Ethernet data center links

• Reach: Up to 10 km over G.652 single-mode fiber

• Technology: 4x100G channels using CWDM4 (1271/1291/1311/1331 nm)

• Key Feature: Supports KP-FEC for enhanced link reliability



  Product Type	Pluggable Optical Modules
  Application	Data Center
  Data Rate	400G
  Protocol	Ethernet
  Form Factor	OSFP
  Reach	2km-20km
  Media Type	SMF
  Wavelength	CWDM
  Interface	Dual LC

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
