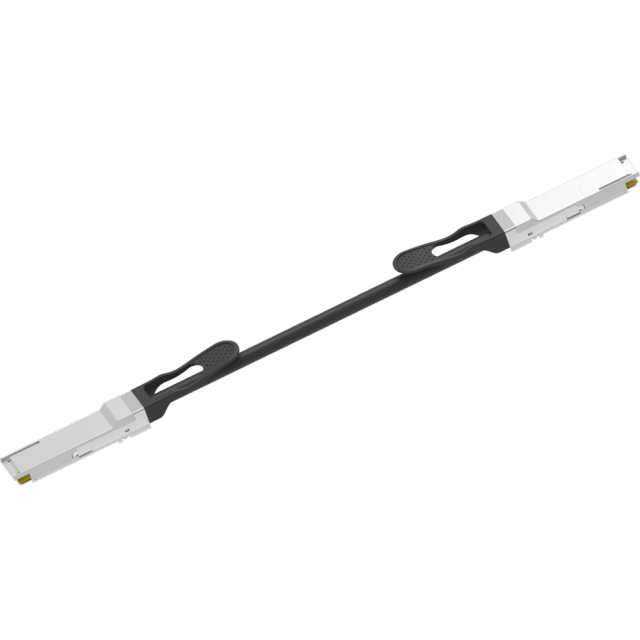

400G OSFP-RHS Direct Attach Copper Cables Support 400GbE and InfiniBand NDR

• Application: Data Center

• Product Type: Direct Attach Copper Cable (DAC)

• Form Factor: OSFP

• Data Rate: 400 Gbps

• Supported Protocols: Ethernet, InfiniBand



  Description	Data Rate	Port 1	Port 2	Distance	P/N
  400G OSFP PCC	425 Gbps	OSFP	OSFP	1m (30AWG) 3m (26AWG)	VOS-PC401-xxC
  400G OSFP-RHS PCC	425 Gbps	OSFP-RHS	OSFP-RHS	1m (30AWG) 2m (26AWG)	VOP-PC401-xxC
  400G OSFP to 2x 200G QSFP56 PCC	425 Gbps 2x 212.5 Gbps	OSFP	QSFP56	1.5m (30AWG) 2m (26AWG)	VOS-2Q56P401-xxC
  400G OSFP-RHS to 2x 200G QSFP28 PCC	425 Gbps 2x 212.5 Gbps	OSFP-RHS	QSFP28	1.5m (30AWG) 2m (26AWG)	VOS-2Q28P401-xxC
  400G OSFP-RHS to 4x 100G QSFP28 PCC	425 Gbps 4x 103.125 Gbps	OSFP-RHS	QSFP28	1.5m (30AWG) 2m (26AWG)	VOS-4Q28P401-xxC
  400G OSFP ACC	425 Gbps	OSFP	OSFP	3~4m (30/26AWG) 4~7m (26AWG)	VOS-AC401-XXC
  400G OSFP-RHS ACC	425 Gbps	OSFP-RHS	OSFP-RHS	2~4m (30/26AWG) 5m (26AWG)	VOP-AC401-xxC

• PCC: Passive Copper Cable

• ACC: Active Copper Cable

• OSFP: Octal Small Form-factor Pluggable

• QSFP: Quad Small Form-factor Pluggable

• RHS: Right-Hand Slot (often referring to a specific orientation for heat sink placement)

• AWG: American Wire Gauge (a standard for wire diameter)

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
