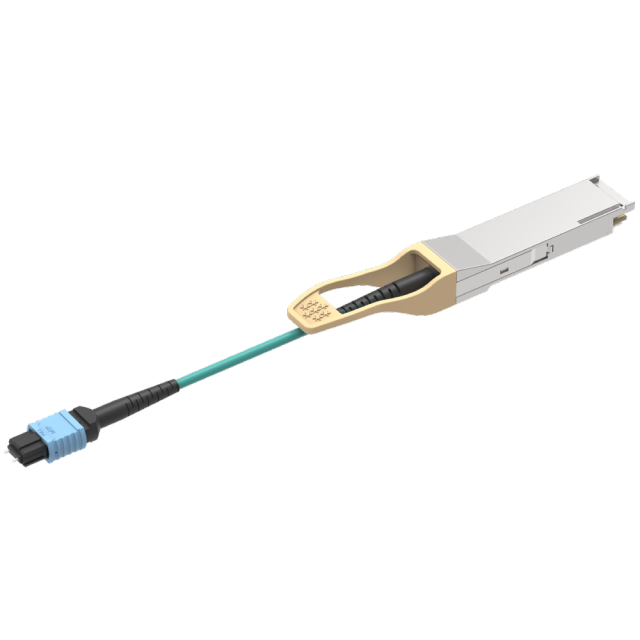

This 400G optical module, in QSFP-DD/OSFP form factors, is engineered for liquid-cooled, submerged data center environments. It is compliant with the 400GBASE-SR8 standard and utilizes 50G PAM4 modulation and VCSEL technology. When Forward Error Correction (FEC) is active in the host system, the module facilitates high-speed data interconnects at 400Gbps over a distance of up to 100 meters using an 8-fiber multimode cable.
Application: 400GbE links in liquid-cooled, submerged data centers.
Form Factor: QSFP-DD/OSFP
Standard: 400GBASE-SR8
Technology: 50G PAM4 and VCSEL
Performance: 400Gbps data rate over 100 meters.
Media: 8 pairs of multimode fiber (MMF).
Requirement: System-level Forward Error Correction (FEC) must be enabled.
| Product Type |
Immersion Liquid Cooling Optics |
|---|---|
| Data Rate |
400G |
| Application |
Data Center |
| Form Factor |
OSFP, QSFP-DD |
| Media Type |
MMF |
| Protocol |
Ethernet |
| Reach |
< 500m |
| Wavelength |
850nm |
| Interface |
MPO/MTP Pigtail |
