24-Port Gigabit PoE+ Switch with 4 SFP+ 10G Uplinks | SNMP & QoS | S5560S-28S-PWR-EI

No.S5560s-52p-si
  • Model Number: H3C S5560S-52P-SI

  • Product Name: H3C S5560S-52P-SI 48-Port Gigabit Switch

  • Port Configuration:

    • 48 x 10/100/1000Base-T Ethernet Ports

    • 4 x Gigabit SFP Ports

    • 1 x Console Management Port

  • Performance:

    • Switching Capacity: 104 Gbps

    • Packet Forwarding Rate: 78 Mpps

  • Hardware:

    • Memory: 512 MB SDRAM / 256 MB Flash

    • Dimensions (H x W x D): 43.6 x 440 x 230 mm

    • Weight: < 3.5 kg

  • Software Features: VLAN Support, LACP, Stackable

  • Environmental:

    • Operating Temperature: 0°C to 45°C (32°F to 113°F)

  • 24-Port Gigabit PoE+ Switch with 4 SFP+ 10G Uplinks | SNMP & QoS | S5560S-28S-PWR-EI
  • Description
  • Ordering & Payment Terms

H3C S5560S-SI Series Overview

The H3C S5560S-SI series provides Gigabit connectivity with 10/100/1000 auto-sensing ports and flexible 1G or 10G optical uplink options. The series includes four models:

Model Electrical Ports Uplink Ports
S5560S-28P-SI 24 x 10/100/1000TX 4 x SFP (1G)
S5560S-52P-SI 48 x 10/100/1000TX 4 x SFP (1G)
S5560S-28S-SI 24 x 10/100/1000TX 4 x SFP+ (10G)
S5560S-52S-SI 48 x 10/100/1000TX 4 x SFP+ (10G)

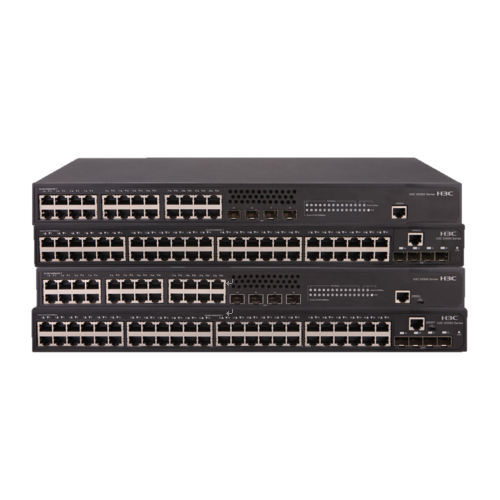

The H3C S5560S-52P-SI is a high-performance Gigabit Layer 3 access switch, designed as a second-generation intelligent managed switch. It is ideal for enterprise networks that demand high performance, high port density, substantial uplink bandwidth, and ease of deployment.

Key Features & Highlights:

  • High Port Density: 48 x 10/100/1000Base-T auto-sensing electrical ports and 4 x Gigabit SFP optical ports for flexible connectivity.

  • High Performance: Offers a substantial switching capacity of 104 Gbps and a packet forwarding rate of 78 Mpps.

  • Layer 3 Capabilities: Functions as a core switch supporting advanced routing and network management.

  • Scalability & Reliability: Supports stacking of up to 9 units and features like Link Aggregation (LACP) and VLAN for scalable and resilient networks.

  • Managed Operation: Includes a console port for out-of-band management and supports full-duplex and half-duplex communication modes.
