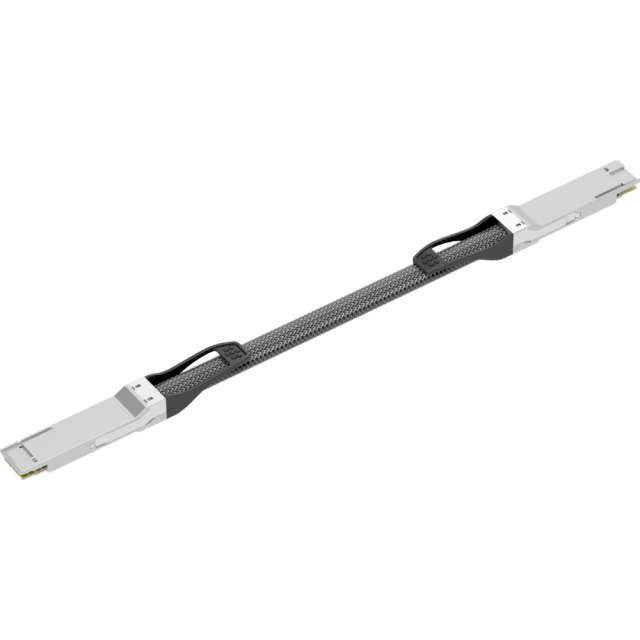

200Gb/s QSFP56 Passive Direct Attach Copper Cable (1-3m)

Designed for intra-rack and inter-rack interconnects in data centers, this 200G QSFP56 PCC passive direct attach copper (DAC) cable supports both the IEEE 802.3cd 200GBASE-CR4 Ethernet standard and the InfiniBand NDR transmission protocol.

It employs 8 pairs of coaxial cables to carry 4 channels of 50G PAM4 signals, achieving a maximum transmission distance of up to 2 meters (with 30AWG cable) or 3 meters (with 26AWG cable).

Product Overview

• Product Type: Direct Attach Copper Cable (DAC)

• Application: Data Center

• Data Rate: 200G

• Protocol: Ethernet, InfiniBand

• Form Factor: QSFP56



  Model Specifications

  Product Model	Cable Gauge (AWG)	Distance (Meters)
  GQS-PC201-XXC	30/26 AWG	1 - 2 m
  GQS-PC201-XXC	26 AWG	3 m






Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
