Key Features:
Form Factor & Data Rate: QSFP-DD, 200G
Applications: Medium to long-distance interconnections within and between data centers.
Compliance: Compliant with 100G PSM4 MSA and 200G Ethernet standards.
Compatibility: Backward compatible with 8x10G/25G Ethernet and InfiniBand QDR/EDR protocols.
Technology & Reach: Utilizes 8-fiber parallel single-mode optics (PSM8) with a 1310nm center wavelength. Supports distances of up to 2km and 10km (with Forward Error Correction enabled).
Operating Temperature: Available with an optional industrial-grade temperature range.
| Part Number | Description | Key Differentiator |
|---|---|---|
| GDM-SPO201-FR8C | 200GE QSFP-DD PSM8 DML 1310nm 2km Optical Module | Commercial Grade |
| GDM-SPO201-FR8T | 200GE QSFP-DD PSM8 DML 1310nm 2km Optical Module | Industrial Grade |
| GDM-SPO201-LR8C | 200GE QSFP-DD PSM8 DML 1310nm 10km Optical Module | Commercial Grade |
| GDM-SPO201-LR8T | 200GE QSFP-DD PSM8 DML 1310nm 10km Optical Module | Industrial Grade |

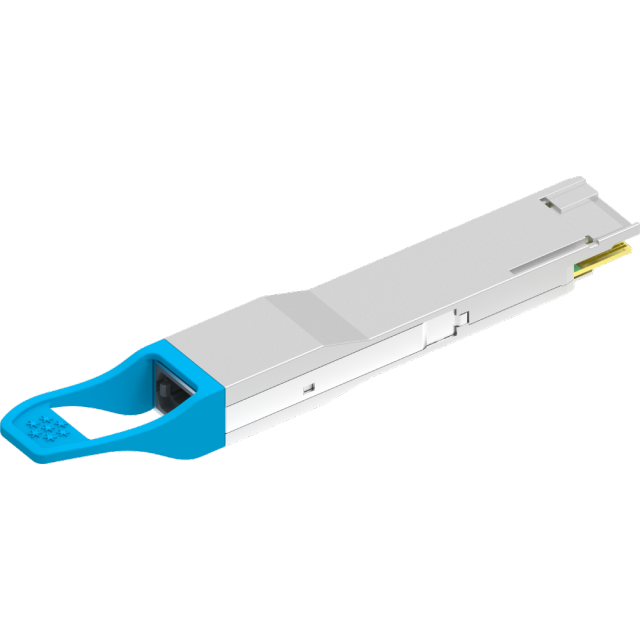

Product Type: Pluggable Optical Module
Key Specifications:
Application: 5G Carrier Networks
Data Rate: 200G
Form Factor: QSFP56
Protocols: Ethernet, OTN (Optical Transport Network)
Reach: 2km to 20km
Media Type: Single-Mode Fiber (SMF)
Wavelength: LAN-WDM
Interface: Dual LC
