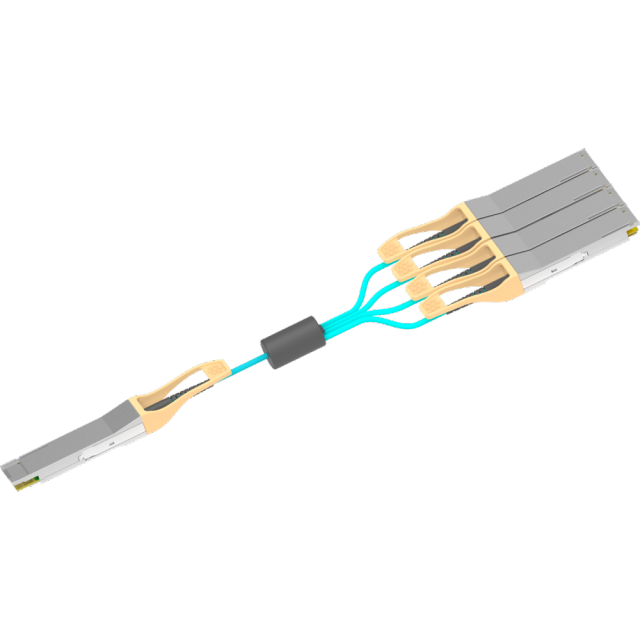

200G QSFP56 Breakout AOC Cable - 4x 50G SFP56 Channels, Up to 100m

200G QSFP56 to 4x 50G SFP56 Active Optical Cable (AOC)

This AOC is designed for short-reach interconnects within data center equipment. It complies with the IEEE 802.3cd standard for 200GBASE-SR4 Ethernet and is also compatible with 50GBASE-SR Ethernet and InfiniBand HDR protocols.

• Application: Internal data center device interconnections.

• Form Factor: QSFP56 on one end, breaking out to four SFP56 interfaces.

• Technology: Utilizes four parallel multimode fibers for data transmission.

• Max Reach: Up to 70m on OM3 fiber, or 100m on OM4/OM5 fiber.



  • Part Number: VQS4-MDO201-xxxC

  • Description: 200G QSFP56 to 4x 50G SFP56 Active Optical Cable (AOC)



    • Product Type: Active Optical Module (AOM)

    • Application: Data Center Interconnect

    • Data Rate: 200G

    • Supported Protocols: Ethernet, InfiniBand

    • Form Factor: QSFP56, SFP56

    • Operating Wavelength: 850nm

    • Media Type: Multimode Fiber (MMF)

    • Maximum Reach: < 500 meters
