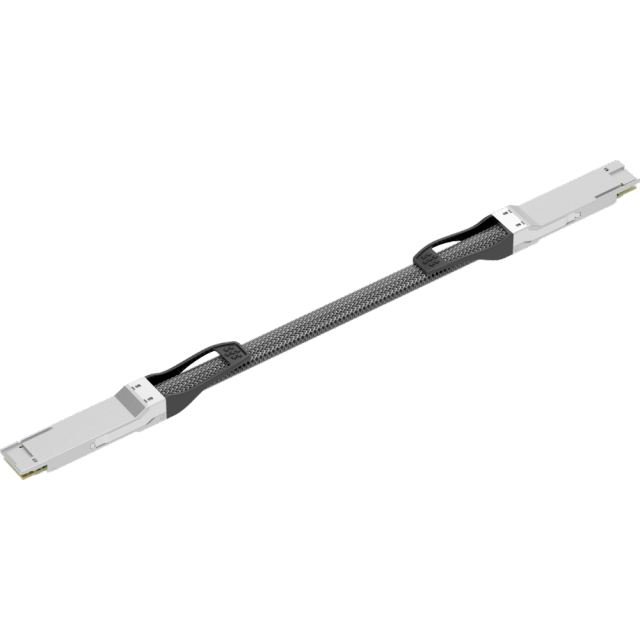

200G QSFP56 ACC Active Copper Cable for CR4 Ethernet and NDR InfiniBand, Up to 7m

No.200G QSFP56 ACC (7m)
  • Utilizes QSFP56 hot-pluggable module and coaxial cable assembly
  • 4-channel 50G PAM4 modulation
  • Maximum per-channel data rate of 53.125Gbps
  • Complies with QSFP56 MSA, CMIS, and ETC 200GBASE-CR4 Ethernet transmission protocols
  • Compatible with InfiniBand HDR transmission protocol
  • Customizable cable length up to 7m
  • Bit Error Rate (BER) better than 1E-15
  • Near-zero power consumption
  • I2C management interface
  • Power supply voltage of 3.3V
  • LSZH (Low Smoke Zero Halogen) cable jacket material
  • LF (Lead-Free) HF (Halogen-Free) PCB
  • Complies with RoHS environmental standards (Lead-Free)
  • 200G QSFP56 ACC Active Copper Cable for CR4 Ethernet and NDR InfiniBand, Up to 7m
  • Description
  • Ordering & Payment Terms
This 200G QSFP56 Active Direct Attach Copper (DAC) cable is engineered for both intra-rack and inter-rack connections within data centers. It leverages 8 pairs of coaxial cables to transmit 4 channels of 50G PAM4 signals, supporting a reach of up to 7 meters. The cable is compliant with the IEEE 802.3ck 200GBASE-CR4 Ethernet standard and is also compatible with the InfiniBand NDR protocol.

  • Description: 200G QSFP56 Direct Attach Copper Cable

  • Application: Data Center Interconnect

  • Data Rate: 200 Gbps

  • Compatibility: Ethernet and InfiniBand protocols

  • Connector: QSFP56 to QSFP56
