Ultra-low power consumption based on the most advanced single-carrier 200G coherent DSP and photonic integration technology, including CFP2-DCO and terminal optical technology
Space-saving modular optical layer function, realize the modularization and miniaturization of various optical layer devices, and flexibly implement optical layer services
Front-to-back airflow, reasonable height, width and depth design, adapt to the server rack requirements of the data center computer room, and can be deployed with the server on the same rack
Easy to operate and maintain based on the software-defined network (SDN) design concept with open APIs, which can be quickly automated and integrated in any IT operating environment to achieve rapid service deployment
Supports unified network management platform based on SNMP, network management methods CLI (Telnet and Console), Web, NetRiver (graphical interface)

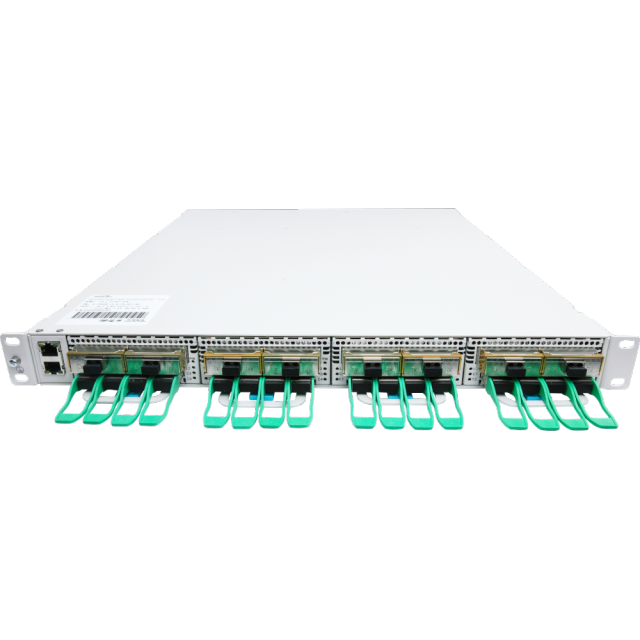

The 1U 1.6T DCI BOX 1.0 is designed for multi-service and high-capacity transmission networking. It is primarily used for interconnecting data centers of telecom operators and internet companies. Additionally, it is suitable for various transmission applications in metro/access aggregation layers and long-haul access networks.
Parameter
Specification
Max. Capacity
1.6T
Wavelength Range
1529.16 nm to 1567.14 nm
Frequency Range
191.30 THz to 196.05 THz
Capacity per Wavelength
200G / 100G
Modulation Format
QPSK / 8QAM / 16QAM
Physical Network Topology
Chain, Star, Ring
Operating Temperature
-10 °C to +70 °C
Storage Temperature
-40 °C to +80 °C
Relative Humidity
5% to 95% (non-condensing)
Dimensions (W × H × D)
440 mm × 44 mm × 535 mm
Cooling
Front-to-back Airflow, FRU Fans
Chassis Structure
All-in-one, 19-inch Rack Mountable
Power Supply (AC)
90 V to 264 V, 50/60 Hz
Power Supply (DC)
-36 V to -60 V
Safety & EMC Compliance
FCC, UL, CE, TUV, CSA
Power Consumption
< 350 W
Ordering & Payment Terms:
Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms: 30% advance payment, with 70% balance due prior to shipment for bulk orders
BANK INFORMATION
Bank Name: DBS BANK (HONG KONG) LIMITED Account Name: Shenzhen VAN Electronics Co., Ltd. Account No.: 798 291 1671 Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong Swift Code: DHBKHKHH
Contact for Quotation: Kindly email your requirements tosales@szvan.comfor a customized quotation and optimal solution. Attn:Jessica Lee
