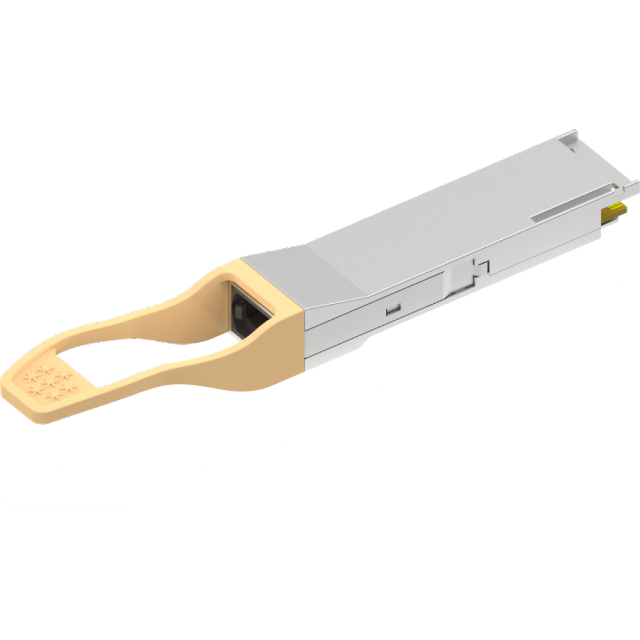

The 128GFC QSFP28 SR4 is an enhanced optical transceiver module for short-haul links within data center storage networks. Its key features include:
Protocol Compliance: Native support for 128GFC/4x32GFC, with compatibility for 40G/100G Ethernet, InfiniBand FDR/EDR, and OTN OTU4.
Optical Design: Employs 4-channel parallel transmission over multimode fiber with a central wavelength of 850nm.
Reach: Supports distances of up to 70 meters on OM3 fiber and 100 meters on OM4 fiber.
Operating Conditions: Available with an optional industrial-grade temperature range.
| P/N | Description |
|---|---|
| VQS-MPO111-SR4C | QSFP28, 100GE/OTU4/128GFC, SR4, 850nm VCSEL, 100m, Multi-mode Module |
| VQS-MPO111-SR4T | QSFP28, 100GE/OTU4/128GFC, SR4, 850nm VCSEL, 100m, Industrial Temp, Multi-mode Module |
Product Type: Pluggable Optical Module
Form Factor: QSFP28
Application: Data Center Interconnect
Data Rate: 100G-112G per Channel
Protocol: Fibre Channel
Media Type: Multimode Fiber (MMF)
Wavelength: 850nm
Operating Distance: < 2 kilometers
Interface/Connector: MPO/MTP
