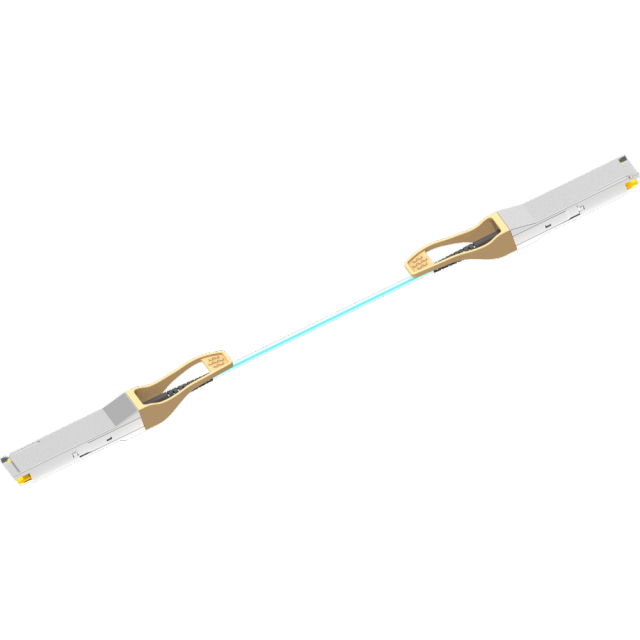

128GFC QSFP28 Active Optical Cable Supports 100GBASE-SR4, EDR InfiniBand, and 128G Fibre Channel

The 128GFC QSFP28 pluggable active optical cable assembly supports the following data rates:

• 100GBASE-SR4 Ethernet

• InfiniBand EDR

• 128G Fibre Channel (4x 32G)

  Option 3: Bulleted List for Clarity

  • Product Type: Active Optical Cable (AOC)

  • Application: Data Centers

  • Connector / Form Factor: QSFP28

  • Speed: 100 Gigabits per second (100G)

  • Compatible Protocols: Ethernet, InfiniBand

  • Fiber Type: Multimode Fiber (MMF)

  • Operating Wavelength: 850 nm

  • Maximum Transmission Distance: Under 500 meters



    Description	Data Rate	Distance (OM3/OM4)	Max. Power Consumption	Part Number
    128GFC QSFP28 AOC	112.2Gbps	70m / 100m	2W	VQS-MDO111-xxxC
    128GFC QSFP28 AOC Lite	112.2Gbps	200m / 300m	2W	VQS-MDO111-exxxC
