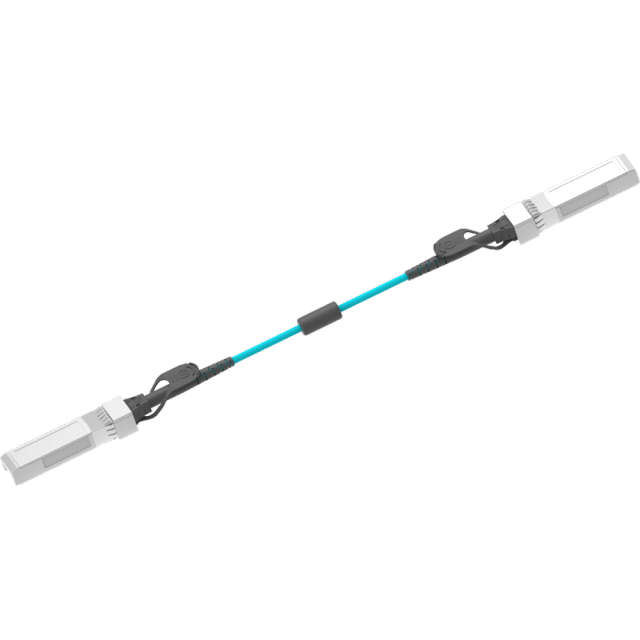

10G SFP Active Optical Cable 1 to 300 meters

No.10G SFP+ AOC(1~300m)
  • An active optical cable assembly with a 10G SFP+ SR optical transceiver module integrated at each end
  • Each side contains a single channel 850nm VCSEL and PIN
  • Transmission rate up to 10.3125Gbps
  • Compliant with SFP+ MSA (SFF-8431) and IEEE 802.3ae 10GBASE-SR Ethernet transmission protocol
  • Using 1 pair of multi-mode optical fiber transmission, the distance can reach up to 300m (OM3)
  • Power consumption less than 1W (per 10G SFP+ SR module)
  • Commercial grade operating temperature range
  • Power supply voltage 3.3V
  • Comply with RoHS environmental protection standard (lead-free)
  • 10G SFP Active Optical Cable 1 to 300 meters
  • Description
  • Additional Information
  • Ordering & Payment Terms
This 10G SFP+ Active Optical Cable (AOC) is designed for short-reach interconnections within data centers. Complying with the IEEE 802.3ae 10GBASE-SR standard, it utilizes a pair of multimode fibers to achieve distances of up to 300m over OM3 fiber.

P/N (Part Number) Description
VSS-MDO100-xxxC 10G SFP+ Active Optical Cable (AOC)

  • Product Type: Active Optical Cable (AOC)

  • Application: Data Center

  • Form Factor: SFP+

  • Data Rate: 100 Mbps to 12 Gbps

  • Protocol: Ethernet

  • Maximum Reach: < 500 meters

  • Media Type: Multimode Fiber (MMF)

  • Wavelength: 850 nm
