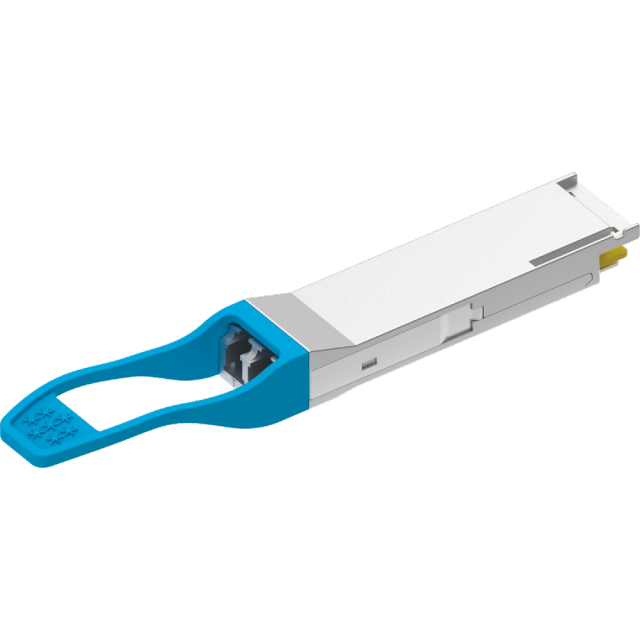

100G QSFP28 LR4 Transceiver, 1310nm EML, 20km Reach

The 100G QSFP28 LR1 is a high-performance optical transceiver module engineered for long-distance applications in datacom and telecom networks. Its key features include:

• Standard Compliance: Compliant with the IEEE 802.3cu 100GBASE-LR1 protocol and the 100G Lambda MSA (LR1-10, LR1-20) specifications.

• Reach: Supports link lengths of up to 10km and 20km when Forward Error Correction (FEC) is enabled.

• Fiber & Wavelength: Utilizes a single-mode fiber (SMF) pair with a 1310nm central wavelength for efficient transmission.



  Part Number	Form Factor	Data Rate	Standard	Wavelength	Transmitter	Reach
  VQS-SPO101-LR1C	QSFP28	100GE	LR4	1310nm	EML	10km
  VQS-SPO101-L21C	QSFP28	100GE	LR4	1310nm	EML	20km

• Product Specifications: QSFP28 100G Optical Transceiver

  • Product Type: Pluggable Optical Module

  • Form Factor: QSFP28

  • Data Rate: 100G

  • Wavelength: 1310nm

  • Reach: 2km, 10km, 20km

  • Media Type: Single-Mode Fiber (SMF)

  • Interface: Dual LC

  • Supported Protocols:

    • Ethernet

    • Optical Transport Network (OTN)

  • Target Applications:

    • 5G Carrier Network

    • Data Center

    • Metropolitan Area Network (MAN)

    • Telecom
