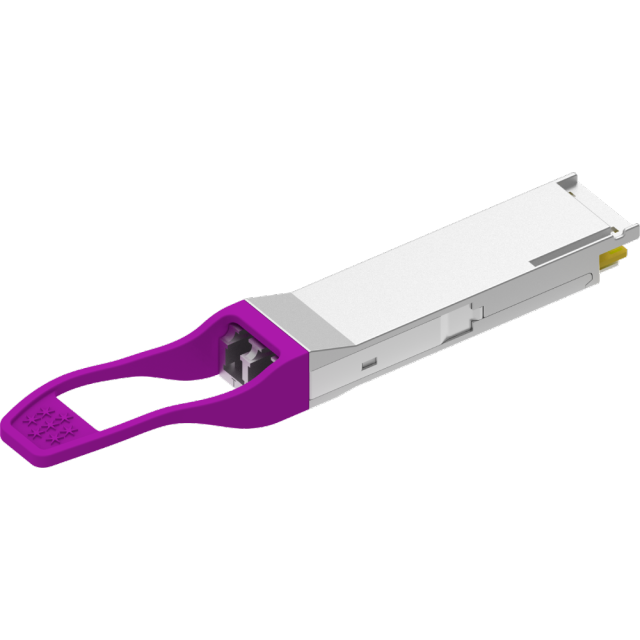

The 100G QSFP28 LR4 is an optical transceiver module engineered for long-distance transmission in datacom and telecom networks.
Compliance: It is compliant with the IEEE 802.3ba 100GBASE-LR4 Ethernet protocol, with dual-rate options available for OTU4 compatibility.
Technology: The module incorporates a built-in 4-channel LWDM MUX and DEMUX. The four center wavelengths are 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm.
Performance: It utilizes a single-mode fiber pair to achieve transmission distances of up to 10km or 20km, both without FEC enabled.
| Part Number | Description | Key Features |
|---|---|---|
| VQS-SPO101-LR4C | 100G QSFP28 LR4 DML LWDM4 Transceiver | 100GE, 10km reach |
| VQS-SPO101-LR4T | Industrial-Grade 100G QSFP28 LR4 DML LWDM4 Transceiver | 100GE, 10km reach, Industrial temperature range |
| VQS-SPO111-LR4C | 100G QSFP28 LR4 DML LWDM4 Transceiver | 100GE / OTU4, 10km reach |
| VQS-SPO111-L24C | 100G QSFP28 LR4 DML LWDM4 Transceiver | 100GE / OTU4, 20km reach |
| VQSR-SPO101-LR4C | 100G QSFP28 LR4 DML LWDM4 Receiver Module | Receiver only, 10km |
Product Overview: Pluggable Optical Module
Key Specifications:
Form Factor: QSFP28
Data Rate: 100G to 112G
Wavelength: LAN-WDM
Media Type: Single-Mode Fiber (SMF)
Interface: Dual LC
Reach: 2 km to 20 km
Supported Protocols:
Ethernet
OTN (Optical Transport Network)
Primary Applications:
5G Carrier Networks
Data Centers
Metropolitan Area Networks (MAN)
Telecom
