Product Description:
The 100G QSFP28 BiDi LR1 transceiver is a single-fiber optical module designed for 100 Gigabit Ethernet links. It enables high-speed data transmission over distances of up to 10 kilometers on a single strand of single-mode fiber.
Key Features:
Form Factor: QSFP28
Data Rate: 100 Gbps
Wavelength: Bi-Directional (BiDi) on a single fiber
Reach: Up to 10km (LR1)
Fiber Type: Single-Mode Fiber (SMF)
Functional Overview:
Transmit Direction: The module multiplexes four lanes of 25Gbps NRZ electrical input signals into a single 100Gbps PAM4 optical signal for transmission.
Receive Direction: The module receives a single 100Gbps PAM4 optical signal and demultiplexes it into four lanes of 25Gbps NRZ electrical output signals.
Compliance:
Electrical Interface: Compliant with OIF CEI-28G-VSR
Mechanical Form Factor: Compliant with QSFP28 MSA

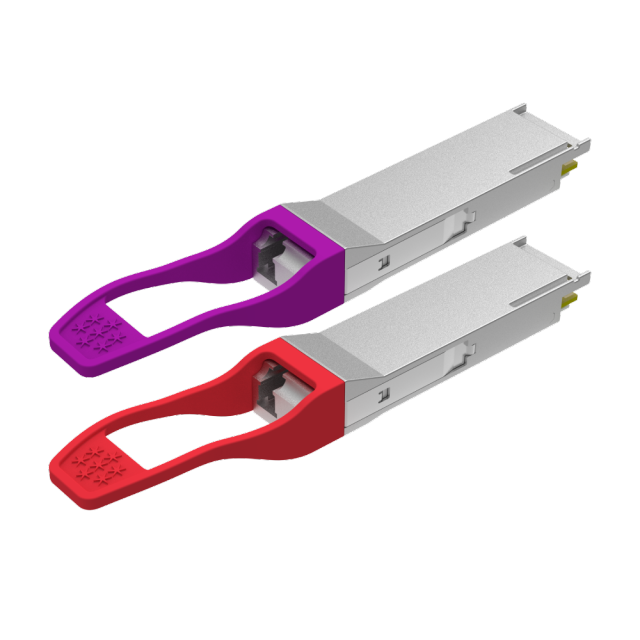

| P/N | Description | Color of Latch |
|---|---|---|
| VBQ-2733101-LR1 | 100G QSFP28 BiDi LR1 EML Tx-1271nm Rx-1331nm 10km | Purple |
| VBQ-3327101-LR1 | 100G QSFP28 BiDi LR1 EML Tx-1331nm Rx-1271nm 10km | Red |
Product Type: Pluggable Optical Module
Form Factor: QSFP28
Application: Data Center
Data Rate: 100G
Protocol: Ethernet
Wavelength: Bi-Directional (BiDi)
Media Type: Single-Mode Fiber (SMF)
Reach: 2km to 20km
Interface: Single LC
