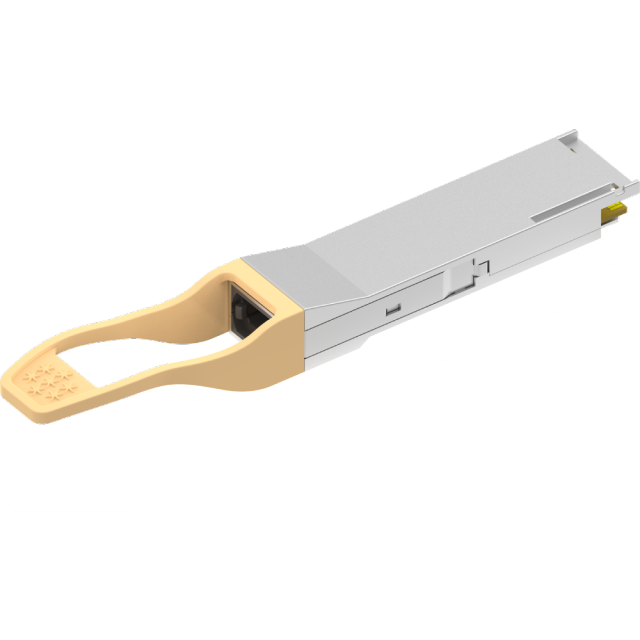

100G QSFP28 eSR4 VCSEL 850nm 300m Optical Transceiver Module

This 100G QSFP28 eSR4 transceiver enables short-range interconnections between devices in data centers.

• Application: Short-range interconnects within data centers.

• Compliance & Protocol: IEEE 802.3bm 100GBASE-SR4 Ethernet, with multi-rate support for 100G Ethernet, OTN OTU4, and 128GFC.

• Transmission Technology: 4 parallel lanes over multimode fiber (MPO connector).

• Wavelength: 850nm.

• Reach: Up to 200m on OM3 fiber / Up to 300m on OM4 fiber.

• Optional Feature: Industrial-grade operating temperature range.

• Product Type: Pluggable Optical Module

• Form Factor: QSFP28

• Application: Data Center

• Data Rate: 100G - 112G

• Protocol: Ethernet, Fibre Channel, InfiniBand, OTN

• Media Type: Multimode Fiber (MMF)

• Wavelength: 850nm

• Reach: 0.5m to 2km

• Interface: MPO/MTP

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
