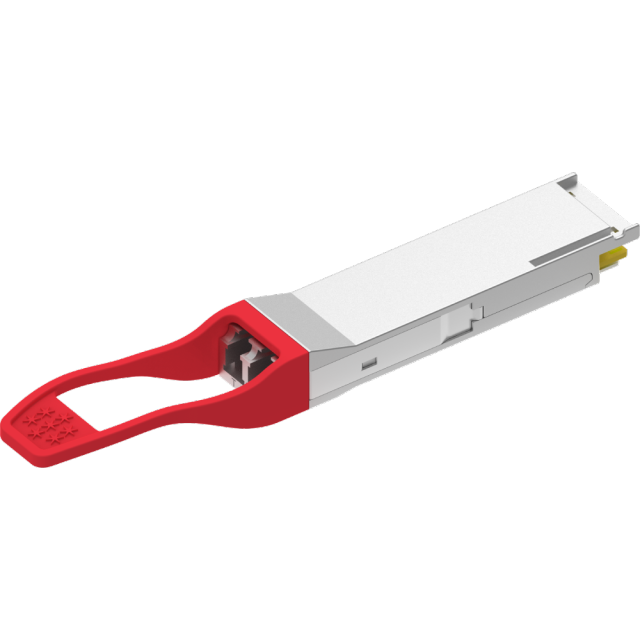

The 100G QSFP28 ER4 optical transceiver module is designed for long-distance transmission in both data communication and telecommunications applications. It complies with the 100G Ethernet transmission protocol and is also compatible with the OTN OTU4 standard.
The module integrates an internal pair of 4-channel LWDM MUX and DEMUX, with center wavelengths set at 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm. It supports transmission over a single-mode fiber pair, achieving distances of up to 30 km without Forward Error Correction (FEC) or up to 40 km with FEC enabled.
| Part Number | Form Factor | Data Rate | Technology | Reach | Module Type |
|---|---|---|---|---|---|
| VQS-SPO101-ES4C | QSFP28 | 100GE | ER4 Lite, DML, LWDM4 | 30km / 40km | Optical Transceiver |
| VQS-SPO111-ES4C | QSFP28 | 100GE / OTU4 | ER4 Lite, DML, LWDM4 | 30km / 40km | Optical Transceiver |
Product Overview
Product Type: Pluggable Optical Transceiver
Form Factor: QSFP28
Media Type: Single-Mode Fiber (SMF)
Interface: Dual LC
Technical Specifications
Data Rate: 100G
Wavelength: LAN-WDM
Transmission Reach: 25km to 50km
Supported Protocols: Ethernet, Fibre Channel, InfiniBand, OTN
Applications
Data Center Interconnects
5G Carrier Networks
Metropolitan Area Networks (MAN)
Telecommunications (Telecom)
