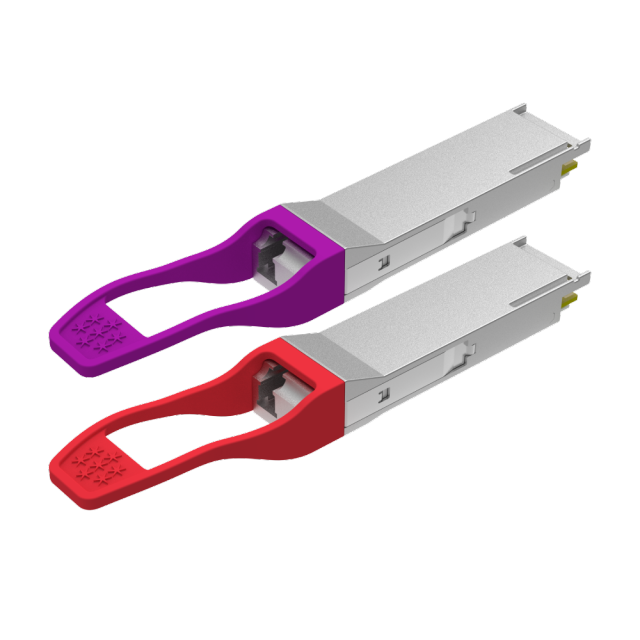

Product Overview: 100G QSFP28 BiDi xLR1 Transceiver Module
This 100G QSFP28 BiDi (Bidirectional) xLR1 transceiver module is designed for high-density 100 Gigabit Ethernet applications over single-mode fiber. It enables a 100 Gb/s data link over a single fiber strand for distances of up to 20 kilometers.
Key Features:
Form Factor: QSFP28 (Quad Small Form-factor Pluggable 28), compliant with the QSFP28 MSA (Multi-Source Agreement).
Data Rate: 100 Gb/s for 100 Gigabit Ethernet.
Reach: Up to 20km over single-mode fiber.
Fiber Type: Single fiber bidirectional (BiDi) operation.
Wavelengths: Utilizes two wavelengths on a single fiber—transmit at 1291nm and receive at 1311nm (or vice versa, depending on the module configuration).
Diagnostics: Integrated digital diagnostic monitoring (DDM) functions accessible via the I2C interface, as defined by the QSFP28 MSA.
Technology: Contains a single channel of optical signaling for simplified fiber infrastructure.
100G QSFP28 BiDi xLR1 Transceiver Modules
| Part Number | Description | Wavelength (Tx/Rx) | Reach | Latch Color |
|---|---|---|---|---|
| VBQ-2931101-L2C | 100G QSFP28 BiDi xLR1 Transceiver | 1291nm / 1311nm | 10km | Purple |
| VBQ-3129101-L2C | 100G QSFP28 BiDi xLR1 Transceiver | 1311nm / 1291nm | 10km |
Product Type: Pluggable Optical Transceiver
Form Factor: QSFP28
Application: Data Center Interconnect
Network Protocol: 100 Gigabit Ethernet (100GbE)
Data Rate: 100 Gbps
Wavelength: Bi-Directional (BiDi)
Media Type: Single-Mode Fiber (SMF)
Transmission Reach: 2 km to 20 km
Fiber Interface: Single LC Duplex Connector
