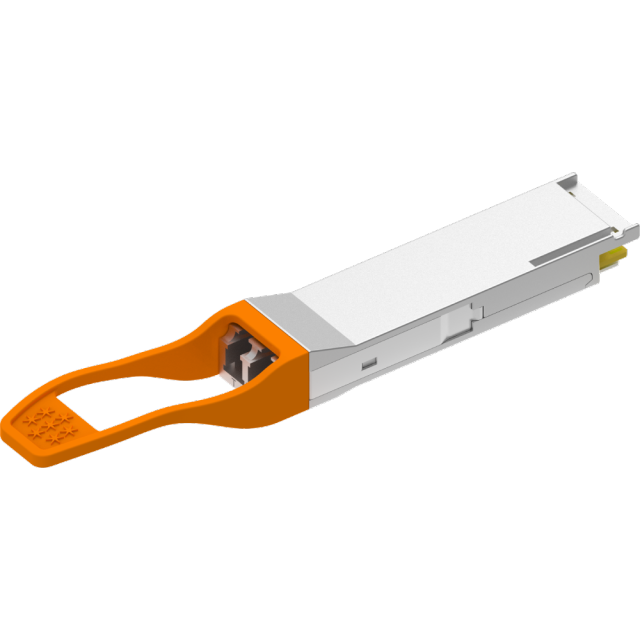

100G QSFP28 4WDM-40 DML CWDM4 30km/40km Optical Transceiver

100G QSFP28 4WDM-40 Optical Transceiver

This transceiver is designed for long-reach interconnects within data centers, compliant with the 100G 4WDM-40 MSA standard. It integrates an internal 4-channel LWDM MUX/DEMUX, operating at center wavelengths of 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm. Utilizing a duplex single-mode fiber (SMF), it supports transmission distances of up to 30 km without Forward Error Correction (FEC) and up to 40 km with FEC enabled.

• P/N: VQS-SPO101-4ER4C

  • Description: 100GE QSFP28 Optical Transceiver, 4WDM-40 (LWDM4) DML, 30km/40km Reach

• P/N: VQS-SPO101-4ER4T

  • Description: Industrial-grade 100GE QSFP28 Optical Transceiver, 4WDM-40 (LWDM4) DML, 30km/40km Reach



    Product Type: Pluggable Optical Transceiver Module

    Form Factor: QSFP28

    Application: Data Center Interconnects

    Supported Protocols: Ethernet, InfiniBand

    Data Rate: 100G to 112G per Module

    Operating Wavelength: LAN-WDM

    Fiber Media Type: Single-Mode Fiber (SMF)

    Connector Interface: Dual LC

    Transmission Reach: 25 km to 50 km

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
