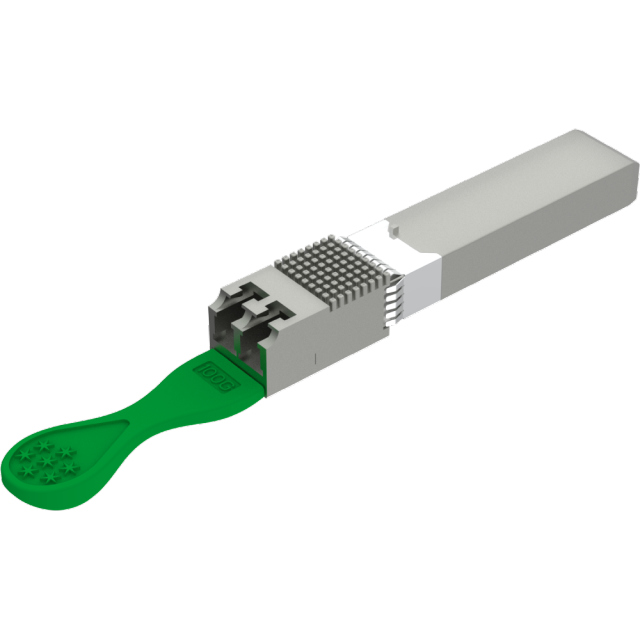

100 Gigabit QSFP56-DD Duplex LC 2km 1310nm SMF Optical Transceiver

No. 100G SFP56-DD FR1 2km
  • Hot-pluggable, full-duplex transceiver module packaged in SFP56 form factor
  • Single-channel 100G PAM4 1304.58nm/1309.14nm cooled EML transmitter and APD receiver
  • Transmission rates of up to 106.25Gbps
  • 1×106.25Gb/s (PAM4) optical interface
  • 2 x 53.125Gb/s (PAM4) electrical interfaces
  • Internal CDR circuitry on receiver and transmitter channels
  • Compliant with SFP-DD MSA, 100G Lambda MSA
  • Built-in 4:1 gearbox DSP on receiver and transmitter channels
  • Transmission up to 2km on SMF using FEC
  • Duplex LC optical interface
  • Built-in digital diagnostic function
  • Commercial operating temperature range
  • Supply voltage 3.3V
  • RoHS compliant (lead-free)
  • 100 Gigabit QSFP56-DD Duplex LC 2km 1310nm SMF Optical Transceiver
  • Description
  • Additional Information
  • Ordering & Payment Terms
This 100G SFP56-DD FR optical transceiver supports 100G Lambda MSA standards and is designed for 100G Ethernet data center links and 5G fronthaul applications, achieving distances of up to 2km over single-mode fiber.

Product Specifications: 100G SFP Optical Transceiver

  • Product Type: Pluggable Optical Module

  • Form Factor: SFP

  • Data Rate: 100 Gbps

  • Protocol: Ethernet

Optical Interface

  • Wavelength: 1310 nm

  • Media Type: Single-Mode Fiber (SMF)

  • Reach: 0.5 m to 2 km

  • Connector: Dual LC

Applications

  • 5G Carrier Network

  • Data Center Interconnects
